Discovering structural or geometric flaws during high-volume production runs introduces severe operational risks. Engineering teams require physical validation of form, fit, and function using end-use materials. Investing in hard tooling for unverified designs remains strategically dangerous. You need a reliable method to test parts before committing to full-scale manufacturing.
This is where Sheet Metal Prototyping serves as the bridge between digital CAD models and scalable manufacturing. It allows engineering teams to test structural integrity, evaluate material behavior, and confirm manufacturability long before finalizing production tooling. By fabricating functional test models from actual production-grade alloys, you eliminate guesswork. You will learn how this process works, how to optimize designs for manufacturability, and how to select the right fabrication partner to accelerate your hardware development cycle.
Sheet metal prototyping utilizes production-grade materials to provide accurate functional testing that additive manufacturing (3D printing) often cannot replicate.
Integrating Design for Manufacturability (DFM) during the prototype stage drastically reduces cost-per-part and lead times when transitioning to low-volume or mass production.
Primary cost drivers include part complexity (number of bends/setups), secondary operations (welding, finishing), and non-standard hardware requirements.
Selecting a fabrication partner requires evaluating their in-house capabilities, quality compliance (e.g., ISO 9001), and speed-to-market (typically 2–5 days for rapid prototyping).
Table of Contents
Sheet metal prototyping is a subtractive and formative manufacturing process used to fabricate physical test models and new-concept products from flat metal stock. Unlike additive methods that build parts layer by layer, this approach cuts, bends, and joins actual metal sheets. Engineers use this process to validate designs using the exact materials intended for final production. When you hold a formed metal part, you can physically verify its rigidity, weight, and assembly characteristics.
The objective is not just to create a physical object. The primary goal is to validate the production process itself. You must ensure the design can be reliably cut, bent, and assembled at scale without material failure or tolerance stack-up issues. A successful prototype proves that the geometric features hold up under real-world manufacturing conditions. If a flange tears during a prototype bend, you know immediately that the flat pattern or material choice needs adjustment before ordering thousands of units.
You must differentiate between "looks-like" prototypes and "works-like" functional prototypes. A "looks-like" model might simply demonstrate industrial design and aesthetics, often made from foam or plastic. A "works-like" sheet metal prototype undergoes rigorous stress, thermal, and integration testing. It bears loads, dissipates heat, and interfaces with other mechanical components exactly as the final product will.
Testing enclosures and cabinets represents a major application for this process. Sheet metal provides excellent electromagnetic interference (EMI) shielding and durability. Prototyping allows you to verify internal clearances for sensitive electronics, test ventilation patterns, and ensure that access panels align correctly. You can physically mount printed circuit boards (PCBs) and route cables to check for interference.
Structural brackets and mounts also require rigorous physical validation. Engineers rely on prototypes to test load-bearing capacity and stress resistance under dynamic conditions. Physical testing often reveals stress concentrations near bends or mounting holes that finite element analysis (FEA) might underestimate. You can bolt the prototype bracket to a test fixture and apply actual torque and vibration.
Chassis and sub-assemblies form the backbone of complex hardware. Prototyping these components ensures precise alignment of multi-component systems and modular hardware. When dealing with complex assemblies, verifying the exact fit of mating surfaces prevents rework during final integration. You can check if the hole patterns line up perfectly across multiple bent parts.
Prototype Classification | |||
Prototype Type | Primary Purpose | Typical Materials | Testing Focus |
|---|---|---|---|
Looks-Like | Visual evaluation, ergonomic checks | Plastics, foam, thin-gauge aluminum | Aesthetics, user interaction |
Works-Like | Functional validation, load testing | Production-grade steel, aluminum, stainless | Structural integrity, thermal performance |
Pre-Production | Manufacturing process verification | Exact specified production alloy | Tolerance stack-up, assembly workflow |
Laser cutting delivers high precision and is ideal for complex geometries. It provides rapid turnarounds without requiring custom tooling. Modern fiber lasers cut through various alloys quickly, leaving clean edges that require minimal deburring. This makes laser cutting the go-to method for generating the initial flat pattern of a prototype. You simply upload the DXF file, and the laser cuts the exact profile in minutes.
Waterjet cutting serves a different purpose. It is primarily used for thicker materials or alloys sensitive to heat-affected zones (HAZ). Because waterjet cutting is a cold process, it prevents thermal distortion and metallurgical changes along the cut edge. This is highly relevant for specific aerospace or medical applications where material temper must remain completely unaltered.
Punching remains highly cost-effective for prototypes requiring multiple standard holes, louvers, or extruded features. CNC turret presses bridge the gap to production by utilizing standard tooling to punch shapes rapidly. While laser cutting is faster for outer profiles, punching is superior for creating form features like dimples or countersinks directly in the flat sheet. A turret press can knock out a grid of ventilation holes much faster than a laser can trace them.
Press brakes are the standard equipment for prototyping bends. Operators use standard V-dies and punches to fold the flat sheet into its final 3D shape. This step requires careful calculation of bend allowances and K-factors based on material thickness and alloy type. Accurate flat pattern generation relies entirely on understanding how the specific material stretches during the bending process. If the K-factor is wrong, the final overall dimensions of the bent part will be out of tolerance.
Select the appropriate V-die width based on material thickness.
Determine the required punch radius to avoid cracking the material.
Calculate the bend deduction to generate the accurate flat pattern.
Perform a test bend on a scrap piece to verify the angle and flange length.
Adjust the press brake backgauge and ram depth for final forming.
Welding, including TIG, MIG, and spot welding, is necessary for evaluating structural joints and heat distortion risks. Prototyping allows welders to determine the optimal weld sequence to minimize warping. It also helps engineers decide if a continuous weld is necessary or if stitch welding suffices for the required structural integrity. TIG welding offers precise control for thin-gauge aluminum enclosures, while MIG welding provides speed for heavier steel frames.
Hardware insertion is a critical assembly step. Teams use standard PEM fasteners, standoffs, and rivets for mechanical assembly. Prototyping verifies that there is sufficient clearance around fasteners for installation tools and that the hardware sits flush against the mating surfaces without causing local deformation. You must ensure the hardware press has enough throat depth to reach the hole locations on the formed part.

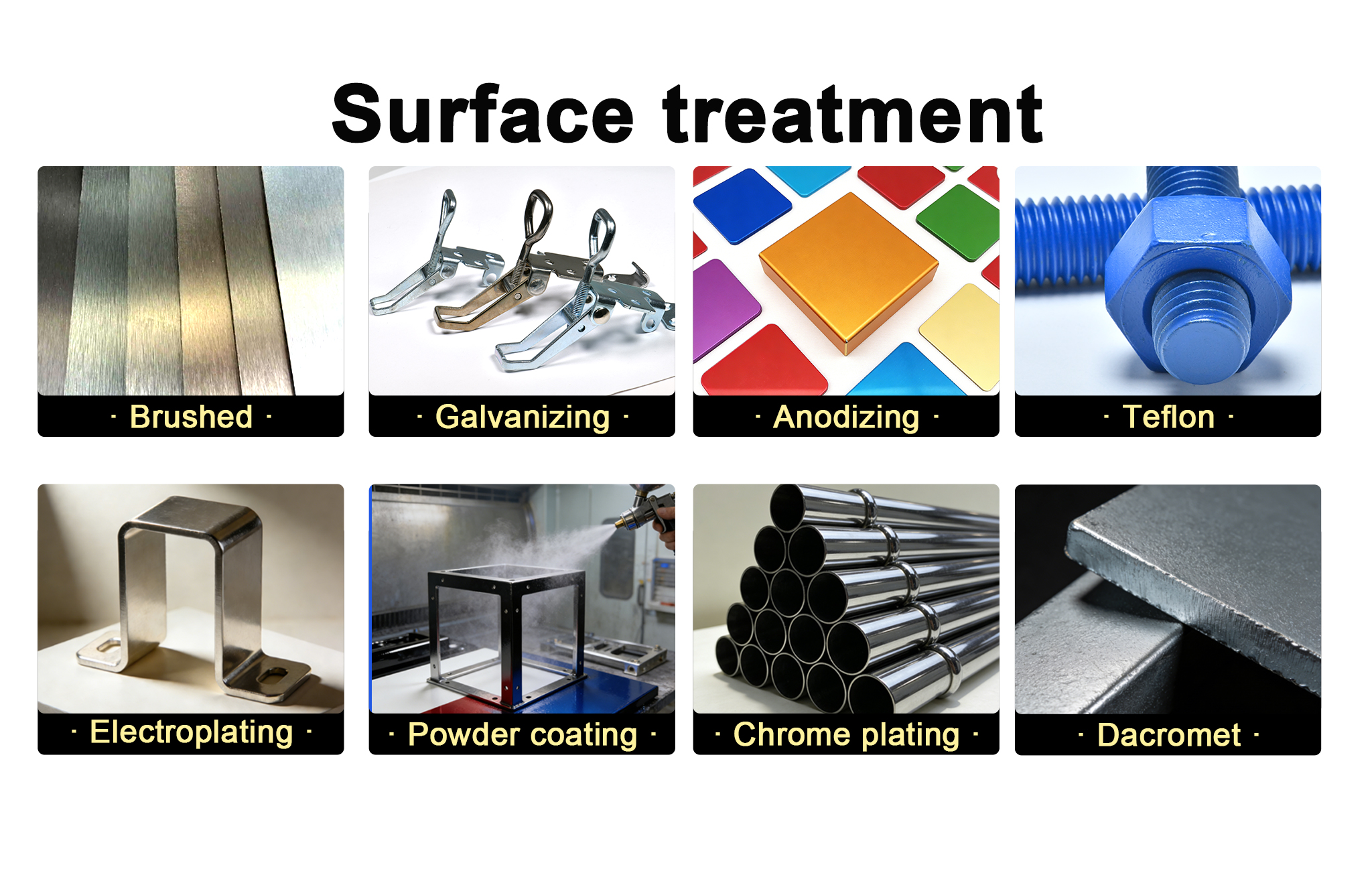

Evaluating functional and cosmetic finishes is the final step in the prototyping phase. Engineers test powder coating, anodizing, chem film, and bead blasting to assess durability, corrosion resistance, and aesthetic appeal. Prototyping helps determine if masking is required for conductive surfaces and how the finish thickness affects overall part tolerances. A heavy powder coat can easily add enough thickness to prevent a mating part from fitting correctly.
3D printing offers unconstrained geometry, allowing designers to create complex internal channels and organic shapes. However, it often lacks the exact isotropic mechanical properties, thermal conductivity, and surface finish of formed sheet metal. Additive parts can exhibit weakness along layer lines. Sheet metal provides true-to-life material testing, ensuring the prototype behaves exactly like the final stamped or formed part under mechanical stress. You cannot accurately test the EMI shielding of a plastic 3D printed enclosure.
CNC machining is ideal for complex, solid, high-tolerance parts. It removes material from a solid block to achieve precise dimensions. However, it is highly inefficient and expensive for thin-walled enclosures or brackets compared to sheet metal fabrication. Machining a thin-walled box from a solid billet wastes massive amounts of material and requires excessive machine time. Sheet metal forming achieves the same geometry faster and with significantly less material waste.
Manufacturing Method Comparison | |||
Feature | Sheet Metal Prototyping | 3D Printing (Plastics) | CNC Machining |
|---|---|---|---|
Material Properties | Exact production alloys | Simulated or weaker plastics | Exact production alloys |
Thin-Walled Parts | Highly efficient | Prone to warping/brittleness | High material waste, slow |
Lead Time | 2-5 Days | 1-3 Days | 3-7 Days |
Geometry Limits | Constrained by bend rules | Unconstrained | Constrained by tool access |
Soft tooling involves utilizing universal press brake dies, laser cutters, and temporary tooling setups. Fabrication shops maintain a library of standard punches and dies to form various angles and radii. This approach requires minimal upfront cost and provides extreme flexibility for design iterations. If a hole needs to move or a flange needs to be longer, engineers simply update the CAD file and cut a new flat pattern. This enables rapid turnaround times essential for agile hardware development. You do not wait weeks for a custom die to be machined.
Hard tooling refers to designing custom progressive dies and dedicated stamping tools. These tools stamp, pierce, and form parts in a single automated stroke. The trade-off involves high initial capital expenditure and long lead times to manufacture the tooling itself. However, once the hard tooling is operational, it delivers extremely low per-part costs at high volumes. Prototyping with soft tooling is the mandatory prerequisite to validate the design before committing capital to hard tooling. You must lock in the design geometry completely before cutting hard tool steel.
Specifying bend radii tighter than the material thickness leads to cracking. This risk is especially high in harder alloys like 6061-T6 Aluminum. When the outside of the bend stretches beyond its ultimate tensile strength, the material fractures. To mitigate this, standardize bend radii across the part to reduce machine setup times. Utilize formable alloys such as 5052 Aluminum or Cold Rolled Steel for components requiring sharp bends or complex forming. If you must use 6061-T6, you will need a much larger bend radius to prevent failure.
Placing holes or slots too close to a bend line causes feature distortion during the forming process. As the metal stretches over the die, it pulls the nearby hole out of round, ruining the tolerance and preventing hardware insertion. Maintain a minimum distance of 2.5 to 3 times the material thickness from the bend radius to the edge of the hole. This ensures the feature remains stable during bending. If a hole must be close to a bend, you may need to punch it after forming, which adds a secondary operation and increases cost.
Over-tolerancing non-critical dimensions increases prototype costs exponentially. Demanding machined tolerances on a bent sheet metal part forces the fabricator into slow, manual inspection and adjustment cycles. Apply tight tolerances only to critical mating surfaces. Rely on standard sheet metal tolerances, typically +/- 0.005 to 0.010 inches, for all other dimensions. This approach balances precision with manufacturing efficiency. Do not apply a blanket +/- 0.001 inch tolerance block to a sheet metal drawing.
Keep bend radii consistent to minimize press brake setup changes.
Ensure all flanges are long enough to span the V-die opening.
Place cutouts and holes away from bend lines to prevent distortion.
Design parts to be formed from a single sheet rather than welding multiple pieces when possible.
Specify standard hardware sizes to avoid custom machining delays.
Analyzing the ratio of raw material expense to labor and setup time is vital. In prototyping, setup time often outweighs material costs. Programming lasers, configuring press brakes, and performing first-article inspections consume significant labor hours. A part made from inexpensive cold-rolled steel can still be costly if it requires six different bend setups and custom fixture fabrication. The actual metal might cost five dollars, but the engineering and setup time can cost hundreds.
Multiple bend setups, custom tooling requirements, and manual welding significantly extend lead times. A simple bracket might ship in two days. A fully welded, multi-part chassis requiring grinding, hardware insertion, and powder coating will stretch lead times to one or two weeks. Minimizing secondary operations during the prototype phase accelerates testing and reduces initial costs. If you can replace a welded joint with a riveted flange, you will save days on the prototype schedule.
Specifying off-the-shelf hardware keeps projects on schedule. Standard PEM nuts and standoffs are readily available. Requiring custom-machined inserts introduces procurement delays and drives up the overall cost. Design around standard hardware catalogs whenever possible to ensure rapid availability and seamless integration during assembly. If your prototype requires a specialized metric standoff that ships from overseas, your entire testing schedule will halt.
Assess whether the vendor only provides rapid, one-off prototypes or if they can scale the exact prototype process into low-volume production runs. A shop optimized only for speed might use non-scalable methods to deliver a part quickly. A strong partner bridges the gap, using processes that easily transition into pilot production without requiring a complete redesign. You want a fabricator who can take your approved prototype and immediately run a batch of fifty units using the same flat patterns and bend programs.
Evaluate the partner's ability to ingest diverse design formats. The best fabricators work with everything from rough hand sketches and 2D PDF prints to fully defined 3D CAD files like STEP, IGES, or SolidWorks. They provide robust engineering support, converting rough concepts into DFM-ready models. This versatility ensures that your ideas move forward regardless of your internal drafting capabilities. A good shop will catch flat pattern errors in your STEP file before they cut any metal.
Evaluate the vendor's machinery and software capabilities. Look for multi-axis press brakes that handle complex forming sequences efficiently. Automated laser cutters with material handling towers demonstrate a commitment to speed and consistency. Furthermore, their software should accept native CAD files and perform automated flat-pattern generation, reducing programming errors and accelerating the transition from screen to machine. Modern press brakes with offline programming capabilities allow the shop to simulate the bending process digitally before tying up the actual machine.
Quality assurance is non-negotiable, even for prototypes. Verify their inspection reporting capabilities, including First Article Inspection (FAI) reports. They must supply material certifications to guarantee you are testing the correct alloy. Industry-standard compliance, such as AS9100 for aerospace or ISO 9001 for general manufacturing, indicates a mature quality management system capable of delivering consistent, accurate parts. You need documented proof that the prototype meets your dimensional requirements before you begin your internal testing.
Sheet metal prototyping remains a critical step for validating enclosures, brackets, chassis, and structural components before committing to production tooling. By optimizing DFM, material selection, fabrication processes, and quality control early in the development cycle, manufacturers can reduce engineering risks, shorten product development time, and transition smoothly from prototype to production.
Wuxi Ingks Metal Parts specializes in custom sheet metal fabrication, precision CNC machining, metal stamping, and rapid prototyping services for customers across a wide range of industries. With experienced engineers, advanced manufacturing equipment, and strict quality control, the company helps customers develop high-quality, production-ready metal components with shorter lead times and reliable manufacturing support.
Review your current 3D CAD models and identify any tight bend radii or holes located too close to bend lines.
Export your finalized designs as STEP files and generate accompanying 2D PDF drawings with critical tolerances clearly marked.
Compile a Bill of Materials (BOM) detailing all required standard hardware, such as PEM nuts or standoffs.
Submit your complete documentation package to a qualified fabrication partner for a comprehensive DFM review and request for quote (RFQ).
A: Standard lead times range from 2 to 5 days for simple parts requiring only laser cutting and basic bending. Complex assemblies involving welding, hardware insertion, or specialized surface finishes like powder coating typically extend the lead time to one or two weeks.
A: Common materials include Aluminum 5052 for its excellent formability, Stainless Steel 304 and 316 for corrosion resistance, Cold Rolled Steel for structural strength, and Copper for electrical conductivity. Material choice depends heavily on the functional requirements of the final part.
A: Soft tooling leverages universal, off-the-shelf press brake dies and laser cutters to form parts without custom fixtures, making it cost-effective for prototyping. Hard tooling involves manufacturing custom stamping dies designed for high-volume production, requiring significant upfront investment.
A: Design for Manufacturability (DFM) reduces costs by standardizing bend radii, ensuring proper hole placement away from bend lines, and avoiding overly tight tolerances. This minimizes machine setup times, prevents material tearing, and eliminates the need for manual rework.
A: While 3D printing is excellent for conceptual models, it cannot replicate the exact isotropic mechanical properties, thermal conductivity, or structural behavior of formed metal. Sheet metal prototyping is necessary for functional testing where the part must bear real-world loads.
