Transitioning a CAD model into a physical, high-tolerance metal component without compromising structural integrity or unit economics is a primary bottleneck in hardware development and industrial scaling. Balancing precision requirements, material constraints, and lead times presents a complex challenge for engineering and procurement teams. Choosing the wrong manufacturing process or an unverified vendor often leads to compounding delays, delayed product launches, and severe supply chain vulnerabilities.
To navigate these challenges, companies need a structured evaluation framework for Metal Parts Manufacturing. Successful procurement requires aligning the specific geometric and functional demands of the part with the correct manufacturing methodology and a rigorously vetted production partner. This guide explores the essential criteria for evaluating processes, selecting partners, and executing effective sourcing strategies to ensure reliable component production.
Process Dictates Unit Economics: The choice between CNC machining, sheet metal fabrication, extrusion, and casting fundamentally alters tooling costs, lead times, and scalability.
Tolerances Drive Costs: Over-specifying tolerances and surface finishes exponentially increases machining time and scrap rates; applying Design for Manufacturability (DFM) is critical for cost control.
Vendor Capabilities Vary Widely: Evaluating a partner requires looking beyond equipment lists to assess Quality Management Systems (QMS), material traceability, and industry-specific certifications (e.g., ISO 9001, AS9100).
Sourcing Models are Evolving: Procurement teams must weigh the localized control of traditional fabricators against the speed and capacity of digital Manufacturing-as-a-Service (MaaS) platforms.
Table of Contents
Matching material properties to the application environment is the first step in successful part realization. Engineers must evaluate yield strength, thermal conductivity, and corrosion resistance against the operational demands of the component. Selecting the wrong alloy can lead to premature failure in the field or excessive wear on cutting tools during production. You have to look at the specific environmental factors the part will face, such as continuous exposure to saltwater, high-vibration environments, or extreme temperature fluctuations.
Comparing common alloys is essential for balancing performance and manufacturability. Aluminum 6061 offers excellent machinability and moderate strength, making it a staple for general-purpose brackets and enclosures. Aluminum 7075 provides higher strength for aerospace applications but is more challenging to machine and weld. Stainless Steel 304 is standard for general corrosion resistance, whereas 316 is preferred for harsh marine or chemical environments due to its molybdenum content. Titanium delivers an exceptional strength-to-weight ratio but significantly increases raw material costs and machining difficulty, requiring specialized tooling and rigid setups.
Material | Key Properties | Common Applications | Machinability |
|---|---|---|---|
Aluminum 6061 | Good strength, weldable, highly corrosion resistant | General structural components, automotive parts | Excellent |
Aluminum 7075 | High strength-to-weight ratio, high fatigue strength | Aerospace frames, high-stress gears | Fair |
Stainless Steel 304 | Excellent formability, good corrosion resistance | Food processing equipment, consumer appliances | Good |
Stainless Steel 316 | Superior corrosion resistance (chlorides/acids) | Marine hardware, chemical processing tanks | Fair |
Titanium (Ti-6Al-4V) | Exceptional strength-to-weight, biocompatible | Medical implants, aerospace turbines | Poor (Requires rigid setups) |
Selecting the correct starting raw material form factor minimizes initial machining time and material waste. Starting with metal billets, sheet plates, bars, extrusions, tubes, or wire depends entirely on the final part geometry. Using a near-net-shape extrusion or a properly sized bar stock reduces the volume of material that must be removed. If you need a long, L-shaped bracket, machining it from a solid rectangular billet wastes an enormous amount of material and machine time. Starting with an L-shaped extruded profile and simply machining the specific hole patterns and cutouts is far more efficient.
Establishing baseline tolerances based on functional requirements rather than default CAD settings prevents unnecessary cost inflation. Default tight tolerances applied globally to a part force manufacturers to use slower feed rates, more frequent tool changes, and continuous manual inspections. Engineers should apply tight tolerances only to critical mating surfaces, bearing fits, or functional features, allowing looser tolerances on non-critical dimensions like outer cosmetic profiles or clearance holes.
Geometric Dimensioning and Tolerancing (GD&T) plays a vital role in communicating exact design intent to the manufacturer. By clearly defining datums, concentricity, flatness, and true position, GD&T eliminates ambiguity. Instead of just giving a plus/minus tolerance on a hole diameter, GD&T specifies exactly how that hole relates to the rest of the part. This precise communication prevents misinterpretation on the shop floor, thereby reducing rejection rates and ensuring that the final parts function correctly within the assembly. A machinist can look at a proper GD&T callout and immediately know which surfaces need to be machined in the same setup to maintain concentricity.
The required production volume dictates the viable manufacturing method. Prototyping and low-volume production favor processes with low upfront tooling costs, even if the per-unit cost is higher. Processes like 3-axis CNC milling or laser cutting require almost zero custom tooling, making them perfect for iterative design phases where the part geometry might change next week.
Conversely, high-volume production justifies significant initial tooling investments to achieve minimal per-unit costs over the long run. Understanding break-even points is necessary for scaling production. Transitioning from low-volume methods like basic CNC machining to high-volume methods such as stamping or die casting becomes financially necessary as quantities increase. Analyzing these thresholds ensures that procurement teams select the most economical process for the projected lifecycle volume of the product. If you are making ten thousand units a year, machining each one from a solid block is rarely the right path.

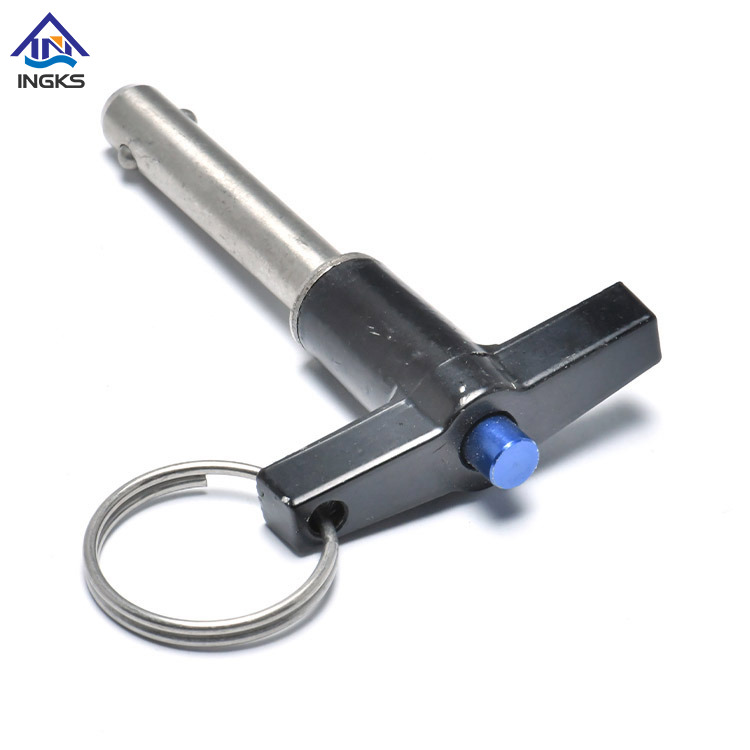

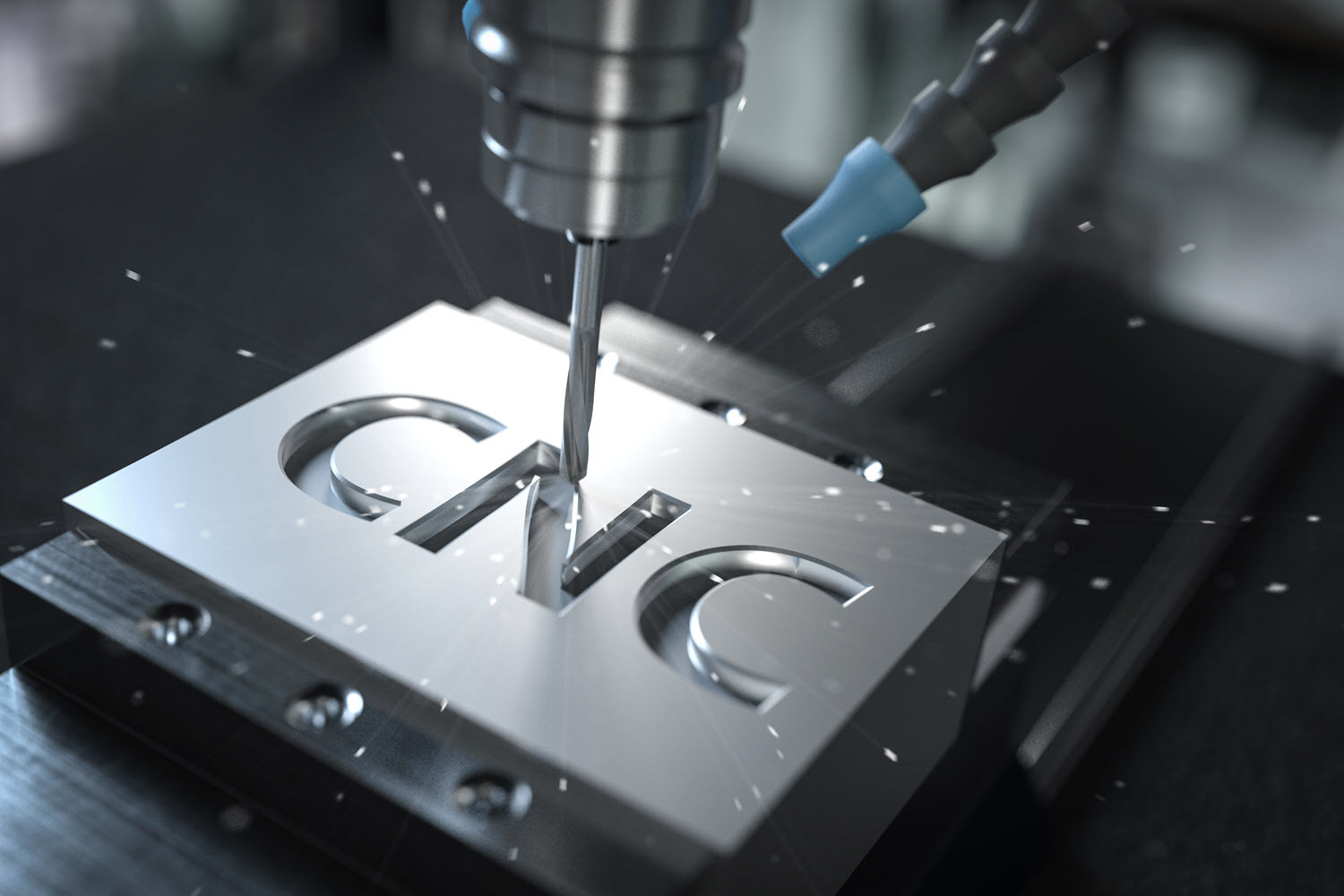

CNC machining is the standard for producing complex geometries and tight tolerances. 3-axis milling is suitable for simpler, planar parts where features are accessible from a single direction. 4-axis and 5-axis machines can articulate the cutting tool or the workpiece to machine complex, multi-sided components in a single setup. This reduces the need for an operator to manually flip and re-fixture the part, which is a common source of tolerance stack-up errors. CNC turning is utilized for cylindrical parts, rotating the workpiece against a stationary cutting tool to create shafts, bushings, and custom fasteners.
The primary trade-offs in CNC machining involve high precision and excellent surface finish versus higher per-unit costs and material waste. Because it is a subtractive process starting from a solid metal billet, a significant percentage of the raw material is machined away as chips. This makes CNC machining ideal for low-to-medium volumes or highly complex parts where tooling for other methods is prohibitive. It is also the go-to method for secondary operations on parts that have been cast or extruded, adding the final high-precision features that those primary processes cannot achieve.
Sheet metal fabrication involves cutting, bending, and assembling flat sheets of metal into functional components. Processes include laser cutting, waterjet cutting, punching, bending via press brakes, and welding. This methodology is highly efficient for creating enclosures, brackets, panels, and structural chassis. Laser cutting provides rapid, precise 2D profiles, while CNC press brakes fold those profiles into rigid 3D structures.
The scalability of sheet metal work is excellent for both prototyping and production. However, it has limitations regarding wall thickness and the creation of complex internal features. Parts must be designed with uniform wall thickness and standard bend radii to ensure manufacturability and structural integrity. If a design requires varying wall thicknesses or complex 3D contours, sheet metal is not the right choice. You also have to account for springback during the bending process, which requires specific tooling adjustments based on the material type and thickness.
Metal extrusion involves pushing heated metal billets through a shaped die to produce continuous, uniform cross-sectional profiles. This process is widely used for creating structural rails, heatsinks, framing, and custom architectural elements. Aluminum is the most common material used for extrusion due to its malleability and excellent thermal properties. The process allows for the creation of complex cross-sections with internal cavities, which would be impossible to machine from solid stock.
The economic profile of extrusion features moderate upfront tooling costs for the custom die, balanced by low run costs and rapid, repeatable production for linear parts. Once the profile is extruded, it can be cut to length and subjected to secondary CNC machining to add specific features like tapped holes, mounting slots, or precise mating surfaces. This hybrid approach—extruding the bulk shape and machining the details—is a highly efficient way to produce complex linear components.
Casting and forging are utilized when structural integrity, specific grain flow, or massive volumes are required. Investment casting is ideal for complex, near-net-shape parts with excellent surface finish, often used for turbine blades or complex manifolds. Die casting forces molten metal into a mold cavity under high pressure, making it perfect for high-volume, complex non-ferrous parts like engine blocks or telecom enclosures. Forging shapes metal using localized compressive forces, aligning the grain structure to maximize part strength, which is why it is used for critical load-bearing components like automotive suspension arms.
These methods are characterized by high upfront tooling costs and longer lead times for mold or die creation. The dies must be machined from hardened tool steel to withstand the thermal and mechanical stresses of the process. However, they are contrasted with exceptionally low long-term unit costs and minimal material waste, making them the preferred choice for mass production. Once the tooling is validated, parts can be produced at a rate of hundreds or thousands per day.
Electrical Discharge Machining (Wire and Sinker EDM) is used for machining conductive, extremely hard materials with microscopic precision. EDM uses electrical sparks to erode material without applying mechanical force, making it ideal for delicate features, sharp internal corners, and hardened tool steels. Because there is no cutting force, you do not have to worry about tool deflection or part distortion, allowing for the creation of incredibly fragile structures or deep, narrow slots that a standard end mill could never reach.
Rotary tube laser cutting offers rapid processing for structural frames, trusses, and complex tubular profiles. This technology precisely cuts holes, slots, and complex end geometries in round, square, or rectangular tubing, significantly reducing manual layout and cutting time for structural assemblies. Instead of manually coping the ends of tubes to fit together for welding, a tube laser can cut perfect interlocking joints in seconds, drastically reducing assembly and welding time on the shop floor.
Metal Additive Manufacturing, including Direct Metal Laser Sintering (DMLS) and binder jetting, builds parts layer by layer. This process is viable for highly complex internal geometries, lightweighting through generative design, and rapid prototyping of parts that would be impossible to machine conventionally. It allows engineers to consolidate multi-part assemblies into a single printed component, eliminating assembly time and potential failure points.
Current limitations include slow production speeds, high material costs, and rougher surface finishes compared to CNC machining. Furthermore, metal 3D printed parts frequently require secondary machining operations to achieve critical tolerances on mating surfaces. The parts also need to be carefully removed from the build plate, and support structures must be machined or ground away. Thermal stresses built up during the printing process often require post-print heat treatment to prevent warping.
Moving from standard tolerances to tight tolerances exponentially increases manufacturing costs. Achieving tighter tolerances requires specialized tooling, slower feed rates, multiple finishing passes, and rigorous CMM inspection. This drives up machine time and increases the likelihood of scrapped parts. When you specify a tolerance of +/- 0.001 inches, the machinist has to account for tool wear, machine thermal expansion, and material stress relief during cutting. They might have to rough the part, let it sit to relieve stress, and then come back for a final finishing pass. All of this adds hours to the production cycle.
Raw material yield optimization drastically reduces overall spend. For sheet metal, nesting algorithms arrange flat patterns to maximize sheet utilization and minimize offcuts. Good nesting software can increase material utilization from 60% to over 85%, which translates directly to lower material costs per part. For CNC machining, sizing billet blocks closely to the final part dimensions minimizes excess material removal, saving both material costs and machining time. Buying custom-sized raw material might have a higher upfront cost per pound, but the savings in machine time often outweigh the material premium.
Evaluating joining methods is a critical component of Design for Assembly (DFA). Permanent joining methods like welding or brazing offer high strength but require skilled labor, specialized fixtures, and post-weld finishing to remove spatter or grind seams flat. Mechanical fastening using threaded fasteners, rivets, or PEM self-clinching nuts provides modularity and easier assembly, allowing parts to be disassembled for maintenance.
Pre-planning for hardware insertion during the design stage reduces post-processing labor and assembly errors. Designing parts to accept standard PEM nuts or standoffs streamlines the assembly process and ensures repeatable, secure connections. Instead of tapping dozens of holes in a thin sheet metal part—which often results in stripped threads—pressing in self-clinching nuts provides robust, load-bearing threads in a fraction of the time.
Post-processing requirements such as anodizing, powder coating, plating, bead blasting, and heat treating impact both financial costs and lead times. These operations often require outsourcing to specialized finishing facilities, adding transit time and logistical complexity. Each time a part leaves the primary manufacturing facility, you add days to the lead time and introduce new risks for damage during transit.
Engineers should specify finishes only where functionally or aesthetically necessary. Over-specifying cosmetic finishes on internal, non-visible components adds unnecessary cost without improving part performance. If a bracket is buried deep inside a machine chassis, a simple clear iridite coating for basic corrosion resistance is sufficient; it does not need a flawless, cosmetically masked hard anodized finish.
Implementing actionable DFM strategies reduces waste and lowers costs. Designing parts with the manufacturing process in mind is the single most effective way to control unit economics. Key principles include:
Standardizing hole sizes to minimize tool changes during CNC machining.
Avoiding deep pockets that require specialized long-reach end mills, which are prone to chatter and deflection.
Minimizing setups by designing features accessible from a single axis, allowing the part to be machined in one operation.
Adding internal radii to pockets that match standard tool diameters, allowing machinists to use larger, faster-cutting tools instead of picking out tight corners with tiny end mills.
Designing sheet metal parts with consistent bend radii across all flanges to prevent the operator from having to change press brake tooling mid-run.
Working with traditional machine shops offers the benefits of direct relationships, localized oversight, and collaborative engineering support. These partnerships are highly valuable for specialized, iterative, or complex projects where direct communication with the machinist can solve manufacturing challenges quickly. You can walk the shop floor, review the first article inspection in person, and make real-time adjustments to the design based on the machinist's feedback.
Potential drawbacks include limited capacity, slower quoting processes, and localized supply chain risks. Traditional shops may lack the scale to handle sudden spikes in volume or the diverse equipment needed for multi-process assemblies. If a local shop's primary 5-axis machine goes down for maintenance, your entire production schedule can be delayed.
Digital manufacturing networks and Manufacturing-as-a-Service (MaaS) platforms offer instant CAD quoting, distributed capacity, and streamlined procurement. These platforms route orders to a global network of vetted suppliers, providing vast capacity and rapid turnaround times. You upload a STEP file, select your material and finish, and receive a quote in seconds.
Trade-offs involve balancing speed and convenience against potential inconsistencies in quality across different network nodes. While platforms manage the vendor relationship, buyers often have less direct communication with the actual machinist on the floor, which can complicate complex, highly customized projects. If a part requires a very specific, non-standard setup, communicating that through a digital portal is often less effective than a direct conversation with the shop foreman.
Sourcing Model | Primary Advantages | Primary Disadvantages | Best Use Case |
|---|---|---|---|
Traditional Machine Shops | Direct communication, collaborative DFM, high accountability | Slower quoting, limited capacity, localized risk | Complex, iterative designs requiring tight engineering collaboration |
Digital Platforms (MaaS) | Instant quoting, massive scalable capacity, fast turnaround | Less direct shop-floor communication, potential node variability | Standardized parts, rapid prototyping, sudden volume spikes |
Evaluating a vendor's Quality Management System (QMS) is mandatory. Key criteria include First Article Inspection (FAI) reporting, material test reports (MTRs) for traceability, and in-house CMM (Coordinate Measuring Machine) capabilities for verifying complex geometries. A shop without a CMM cannot reliably verify tight geometric tolerances on complex 3D surfaces.
Mapping required certifications to specific industries ensures compliance. General manufacturing typically requires ISO 9001, which demonstrates a baseline commitment to quality processes. Aerospace demands AS9100, which includes strict requirements for traceability and risk management. Medical device manufacturing requires ISO 13485, focusing on product safety and regulatory compliance. Defense contracts necessitate ITAR compliance to ensure that sensitive technical data is handled securely by US-based personnel.
The risk of substandard or counterfeit raw materials can compromise part integrity and lead to catastrophic failures. Procurement teams must enforce strict documentation and traceability requirements from the vendor. Requesting mill certs and material test reports ensures that the chemical composition and mechanical properties of the raw material meet the specified standards. If you are building a load-bearing structural component, you need absolute certainty that the aluminum used is actually 7075-T6 and not a cheaper, weaker substitute.
Common bottlenecks in custom metal fabrication include tooling creation, raw material shortages, and outsourced finishing steps. Tooling delays for casting or extrusion can push project timelines back by weeks or months. If the initial die design requires modification after the first test shot, the entire production schedule shifts.
Mitigation strategies include dual-sourcing critical components to avoid single points of failure. Establishing clear service level agreements (SLAs) for delivery and maintaining buffer inventory for long-lead-time parts helps stabilize the supply chain. For critical cast parts, it is often wise to have a secondary supplier capable of CNC machining the parts from billet as an emergency backup, even if the unit cost is higher.
Sharing proprietary CAD files presents significant security risks. Unsecured file transfers or unvetted vendors can lead to intellectual property theft. When you send a native CAD file, you are sending the complete DNA of your product.
Protocols for IP protection must include robust Non-Disclosure Agreements (NDAs) signed before sharing any data. Utilizing secure file transfer protocols and thoroughly vetting the cybersecurity standards of digital platforms and traditional vendors are essential steps in protecting proprietary designs. Ensure that vendors have strict internal policies regarding who can access customer CAD data and how that data is stored and eventually destroyed after production.
Successful Metal Parts Manufacturing requires achieving the optimal intersection of process capability, material suitability, and vendor reliability. Applying a structured approach ensures that parts meet functional requirements while maintaining scalable unit economics. By understanding the constraints of each manufacturing method and applying rigorous DFM principles, engineering teams can eliminate unnecessary costs and accelerate production timelines.

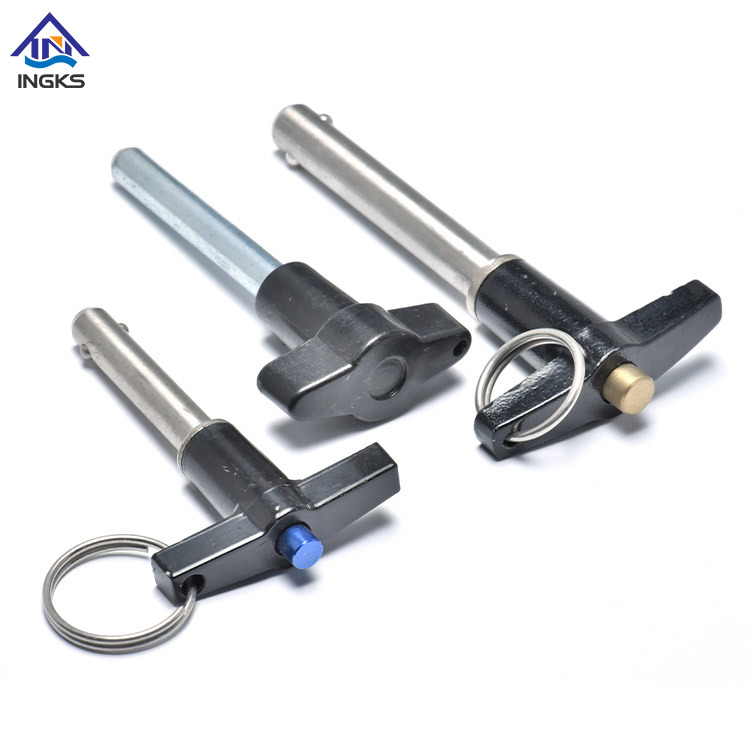

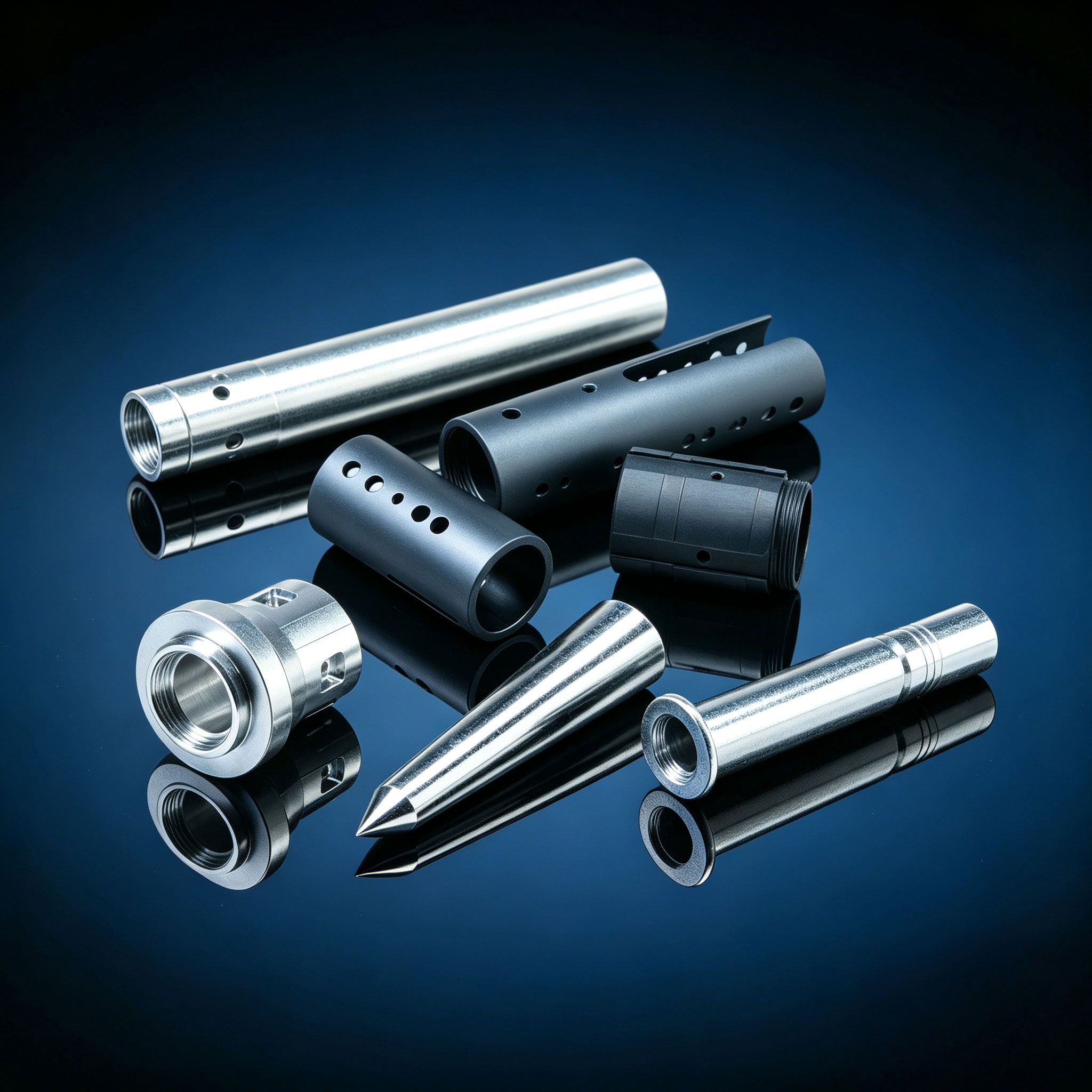

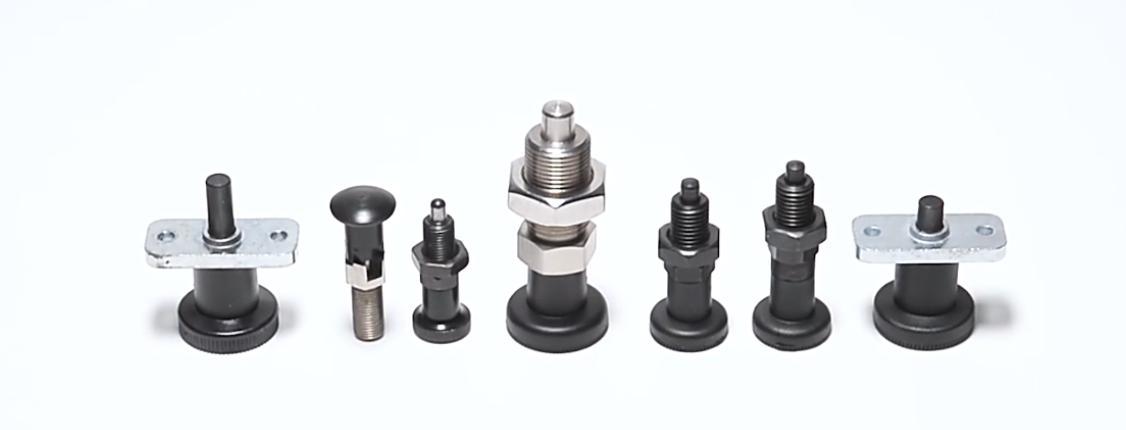

Wuxi Ingks Metal Parts specializes in precision CNC machining, sheet metal fabrication, and custom metal component manufacturing for customers around the world. With advanced production equipment, experienced engineers, and strict quality management, the company provides reliable prototype and mass production solutions for a wide range of industrial applications.
To move forward effectively, follow these actionable steps:
Define volume, geometry, and tolerance to narrow the primary manufacturing process.
Apply DFM and DFA principles to optimize the CAD model and minimize assembly complexity.
Filter vendors by required certifications, material specialty, and production capacity.
Run a pilot or First Article Inspection (FAI) before committing to full-scale production.
Finalize 3D CAD files (STEP/IGES), output flat patterns (DXF/DWG) for sheet metal, and prepare a comprehensive 2D PDF drawing with GD&T callouts to initiate a DFM review with shortlisted partners.
A: It depends entirely on volume and geometry. Sheet metal is highly cost-effective for flat or bent parts. CNC machining is best for low-to-medium-volume complex parts. Die casting and extrusion are the most cost-effective for high-volume production, despite their high initial tooling costs.
A: Machining from billet is a subtractive process that mills a block of solid metal down to a finished, complex 3D shape with extreme accuracy. Sheet metal fabrication manipulates flat sheets of metal through cutting, bending, and welding to form structural components and enclosures.
A: Tight tolerances require specialized tooling, slower machining feed rates, multiple finishing passes, and rigorous CMM inspection. This increases machine cycle times and the likelihood of scrapped parts, which directly inflates the per-unit cost.
A: An FAI verifies that the manufacturer's production process can reliably produce parts that meet all specified design and tolerance requirements before full-scale production begins, mitigating the risk of mass-producing defective components.
A: Require your vendor to provide material test reports (MTRs) and mill certificates with every batch of parts. These documents verify the chemical composition and mechanical properties of the raw material used in your components.
