Indexing plungers are essential components in a wide range of industries, including manufacturing, automation, robotics, and machinery design. These simple yet highly effective devices are designed to lock and position parts with precision. While the basic functionality of indexing plungers is the same—to provide secure locking and repeatable positioning—there are various types of indexing plungers, each suited for specific applications and environments.
In this article, we’ll explore the different types of indexing plungers available on the market today, their key features, applications, and how to select the right plunger for your particular needs. Understanding the variations of indexing plungers is important for industries that rely on accurate, secure, and repeatable adjustments in their systems.
An indexing plunger is a mechanical device used for locking, positioning, and securing parts or components within machines, tools, or fixtures. The basic design of an indexing plunger consists of a spring-loaded pin that can be extended or retracted based on the operator’s action. When the pin extends, it locks into a hole, notch, or indentation, securing the part in place. The pin is then retracted when needed, allowing the part to move.
Indexing plungers are used in a variety of applications where precise positioning and repeatability are essential. These devices are commonly employed in machines, fixtures, jigs, custom tooling systems, robotics, and conveyor systems. The versatility of indexing plungers makes them an indispensable tool in many industrial sectors.
There are several types of indexing plungers available, each designed to suit specific operational needs and load requirements. The key differences among these types typically relate to how the pin is extended and retracted, the locking mechanism, the load capacity, and the application environment. Let's take a deeper dive into the various types of indexing plungers and their features.
Push-type indexing plungers are among the most common types used in various applications. As the name suggests, these plungers are activated by pushing a button or knob. When the button is pressed, the spring-loaded pin extends and locks into a corresponding hole or notch, securing the part in place.
Key Features:
Activation: Pushing the button or knob to extend the pin.
Ease of Use: Simple operation, making it ideal for quick adjustments.
Common Applications: Workholding fixtures, jigs, and machinery that require frequent but secure repositioning.
Advantages:
Fast and easy to use for manual operations.
Provides secure locking with minimal effort.
Ideal for applications that require frequent repositioning.
Applications:
Push-type indexing plungers are ideal for workholding applications, where fast and frequent adjustments are necessary, such as in assembly lines, light machinery setups, and smaller machines.
Pull-type indexing plungers are another common variation, where the pin is extended by pulling the knob or lever. The pin is retracted when the operator pulls on the knob, allowing the part to be moved freely. Once the desired position is reached, the operator releases the knob, allowing the pin to extend and lock into place.
Key Features:
Activation: Pulling the knob or lever to extend the pin.
Precise Locking: Often provides a more secure lock compared to push-type plungers.
Common Applications: Applications that require more secure locking, or where higher forces need to be controlled.
Advantages:
Often more secure than push-type plungers.
Provides precise control over the locking mechanism.
Suitable for higher-load applications.
Applications:
Pull-type indexing plungers are commonly used in tool setups, heavier machinery, and custom fixtures that require greater precision and load-bearing capacity.
Heavy-duty indexing plungers are designed for applications that require high load capacities or more robust locking mechanisms. These plungers are typically made from durable, hardened materials such as steel, which can withstand the demands of heavy machinery and large components.
Key Features:
High Load Capacity: Able to handle larger loads than standard plungers.
Durability: Made from hardened steel or other high-strength materials.
Heavy Machinery: Designed for use in more rugged industrial environments.
Advantages:
Can handle higher forces and larger parts.
Durable construction for harsh environments.
Ideal for heavy-duty applications requiring more robust locking.
Applications:
Heavy-duty indexing plungers are commonly found in heavy machinery, automotive manufacturing, and aerospace applications where larger components need to be locked securely and with high precision.
Miniature indexing plungers are smaller versions of standard indexing plungers, offering the same functionality but in a more compact form. These are ideal for applications where space is limited but precise locking is still required.
Key Features:
Compact Design: Smaller size compared to regular plungers.
Precise Locking: Offers the same precise locking functionality as standard plungers.
Space-Saving: Ideal for tight spaces and compact machinery.
Advantages:
Small size allows for use in tight spaces.
Provides precision and repeatability in small machinery or equipment.
Cost-effective and versatile.
Applications:
Miniature indexing plungers are commonly used in small machines, medical devices, laboratory equipment, and compact fixtures that require precise positioning but have limited space.

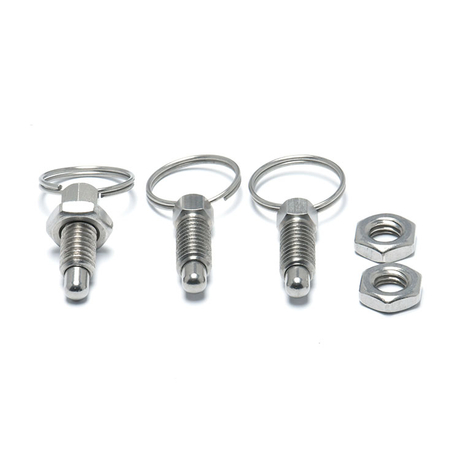

Threaded indexing plungers have a threaded body that allows for easy installation into machines or fixtures. These plungers are ideal for applications where the plunger needs to be securely mounted into a specific position.
Key Features:
Threaded Body: Easy installation into threaded holes or fixtures.
Secure Mounting: Provides stable and permanent placement.
Ideal for Fixed Installations: Can be used in fixed machinery or systems.
Advantages:
Provides a secure and stable mounting.
Ideal for installations where the plunger should not move.
Strong and durable construction.
Applications:
Threaded indexing plungers are used in fixed machinery and jigs that require secure, long-term installations. They are also used in automotive and aerospace applications where precise, permanent positioning is necessary.
Selecting the right indexing plunger for your application requires careful consideration of several factors. Here are some key considerations when choosing the best indexing plunger for your needs:
Make sure to select an indexing plunger that can handle the load and force requirements of your specific application. For heavy-duty applications, opt for a plunger with a higher load capacity.
Consider the space available for installation. Miniature indexing plungers are ideal for applications with limited space, while standard or heavy-duty plungers are better for larger machinery.
Decide whether a push-type or pull-type plunger is more appropriate based on the ease of use, precision, and security required for your application.
Choose an indexing plunger made from materials that are durable and resistant to wear, corrosion, and other environmental factors, especially for heavy-duty or outdoor applications.
Feature | Push-Type Indexing Plunger | Pull-Type Indexing Plunger | Heavy Duty Indexing Plunger | Miniature Indexing Plunger |
Activation Method | Push Button | Pull Button | Pull Button | Push Button |
Load Capacity (kg) | 20 | 50 | 100 | 10 |
Material | Stainless Steel | Stainless Steel | Hardened Steel | Stainless Steel |
Size | Standard | Standard | Large | Small |
Application | Light Machinery | Tooling and Fixtures | Heavy Machinery | Small Machines |
In conclusion, indexing plungers are indispensable components that provide simple yet effective solutions for locking and positioning parts in various industries. With the different types of indexing plungers available, including push-type, pull-type, heavy-duty, and miniature versions, there is a suitable plunger for virtually any application. By selecting the right type of indexing plunger based on factors such as load capacity, activation method, and space availability, you can optimize the precision and efficiency of your machinery and tools.
For more information on the various types of indexing plungers and to explore high-quality options for your specific needs, visit Wuxi Ingks Metal Parts Co., Ltd. Their extensive range of industrial components can help enhance your systems’ performance and provide the precise locking and positioning solutions you require.
Q: What is an indexing plunger?
A: An indexing plunger is a mechanical device used to lock, position, and secure parts within machines or fixtures. It consists of a spring-loaded pin that engages with a hole or notch to lock the part in place.
Q: How do push-type and pull-type indexing plungers differ?
A: Push-type plungers are activated by pressing a button, while pull-type plungers are activated by pulling a knob or lever. Pull-type plungers generally offer more secure locking.
Q: Can heavy-duty indexing plungers handle larger loads?
A: Yes, heavy-duty indexing plungers are specifically designed for applications that require higher load capacities and more robust locking mechanisms.
Q: What types of environments can miniature indexing plungers be used in?
A: Miniature indexing plungers are ideal for use in compact machines or tight spaces where precision and repeatability are still required but the available space is limited.
