Indexing Pins — 0.01mm Precision Positioning, Redefine Industrial Efficiency
Integrate Positioning, Indexing & Locking — Core Precision Mechanical Components for Automation, Fixtures, Medical Equipment & More

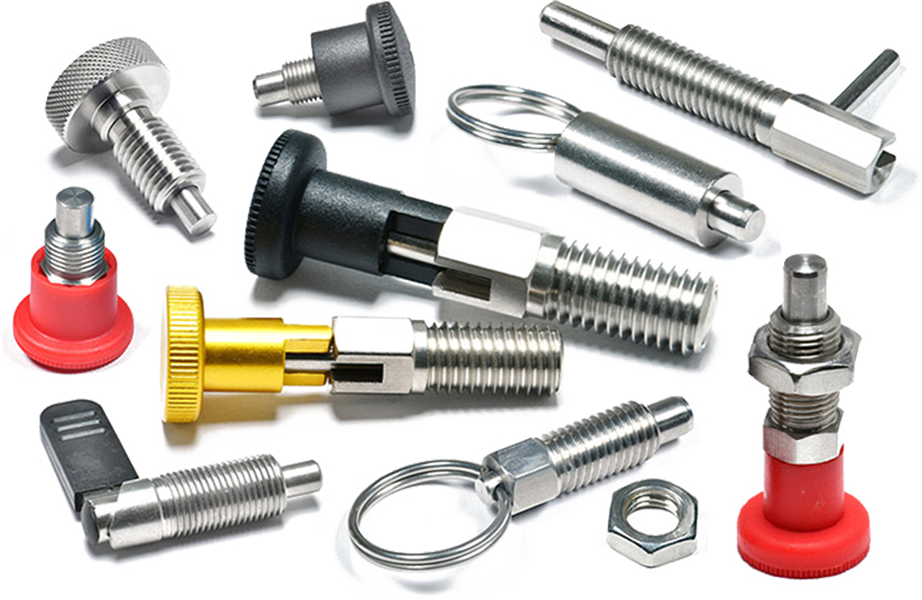

Product Overview of Indexing Plunger
What is a Indexing plunger and its purpose?

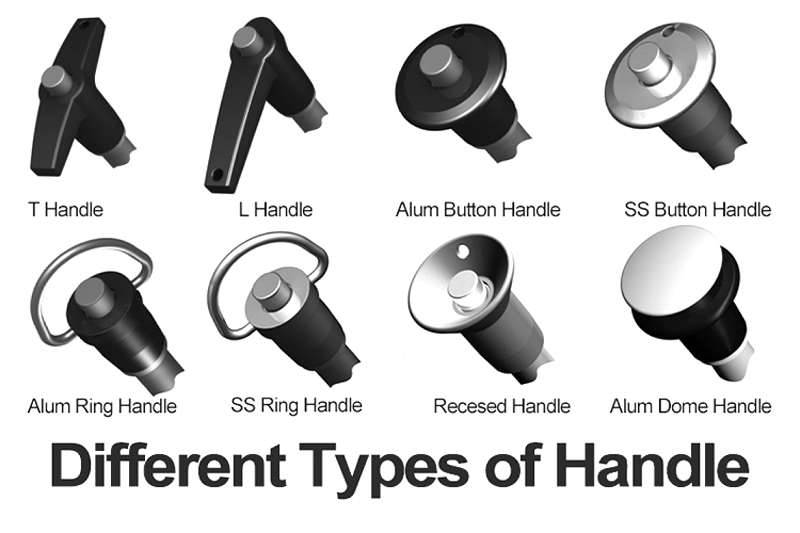

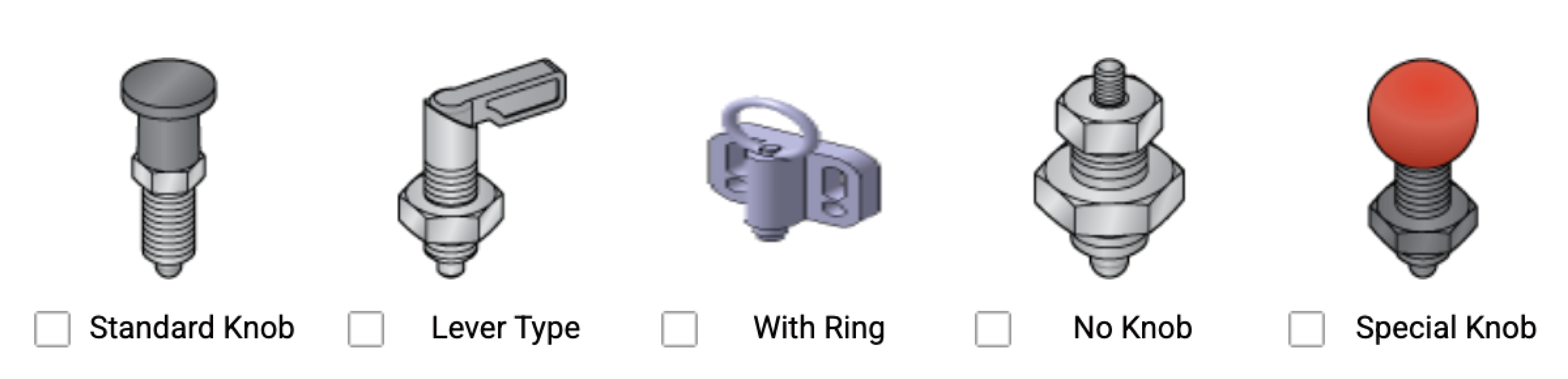

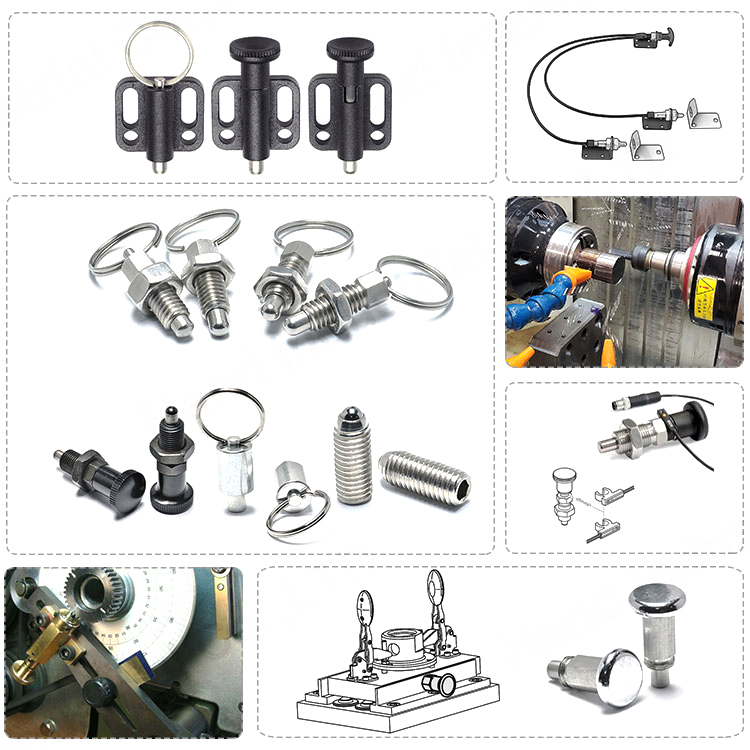

Multi-Scenario Adaptability: Optional manual/ full coverage of pull ring/button/knob/automatic reset types, suitable for light instruments to heavy molds ,Standard Knob/ Lever Type /With Ring/ No Knob /Special Knob/
Product Center
Key Customization Advantages
Customized Size, Material, Drive Mode & Mounting Structure for Special Working Conditions
Efficient & Stable Connections
Lock Pins allow quick, tool-free assembly anddisassembly, ensuring stable connections andimproving maintenance efficiency.
Flexible Sizes & Customization

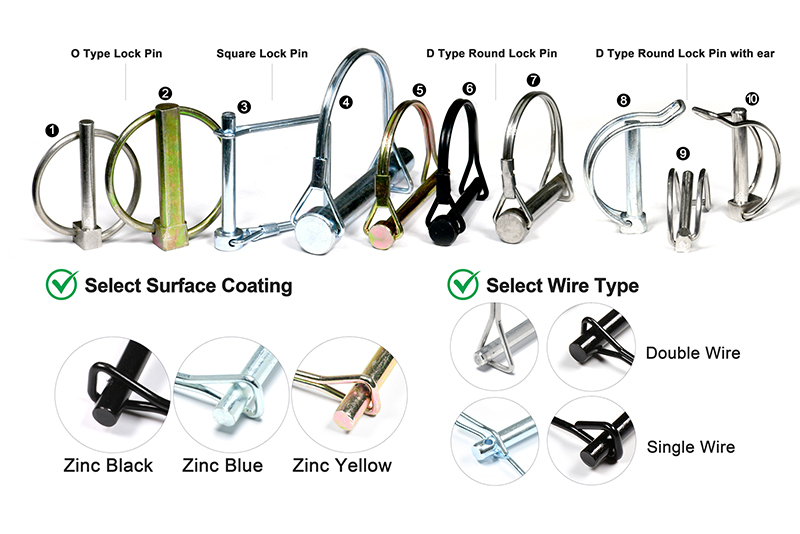

Available if2 -480mm, Lock Pins can be fullycustomized. Special sizes, irregular shapes, and surfactreatments can be made from customer drawings.Multiple locking methods-pin, push-button, orpull-ring-are supported.
Technical SpecificationsSafety Pins & Quick Release Pins
Pin Structure & Material Composition
The pin consists of aprecision-machined body, lockingballs, and an internal springmechanism to ensure secure lockingand quick release.Standard materials include carbonsteel and stainless steel, withstainless steel balls and springs forsmooth operation and extendedservice life.
Standard Sizes, LoadRatings & Custom Options
Pins are available in variousdiameters and usable lengths to fitdifferent applications.Custom dimensions, grip lengths,and tolerance requirements can bemanufactured based on customerdrawings or application needs.Load ratings can be provided uponrequest.
Surface Treatments &Corrosion Protection
Surface finishes include zinc plating(clear or trivalent passivation), blackoxide, or passivation for stainlesssteel versions.Surface treatment options areselected to ensure corrosionresistance in indoor, outdoor, orhigh-humidity environments.
Standards, Testing &Quality Assurance
Products are manufactured inaccordance with applicable ISO, DIN,or customer-specified standards.Each production batch undergoesdimensional inspection, functionaltesting, and visual checks to ensureconsistent locking performance andreliability.
OEM Service
Tailored Customization
Our mobile battery OEM service adapts to diverse specs—capacity, form, branding—for consumer electronics, industrial devices, etc.
Quality & Compliance
Advanced manufacturing and strict testing ensure adherence to CE/UL/RoHS. We prioritize durability, safety, and consistent performance.
Tailored Customization
Our mobile battery OEM service adapts to diverse specs—capacity, form, branding—for consumer electronics, industrial devices, etc.
Quality & Compliance
Advanced manufacturing and strict testing ensure adherence to CE/UL/RoHS. We prioritize durability, safety, and consistent performance.
Contact Us
Boasting a team of seasoned experts, while offering technical assistance and comprehensive one-stop solutions to the global marketplace.
Our Certificate
Best Fitness Equipment Manufacturer Award: Awarded for three consecutive years, recognizing our superior quality and innovation.
